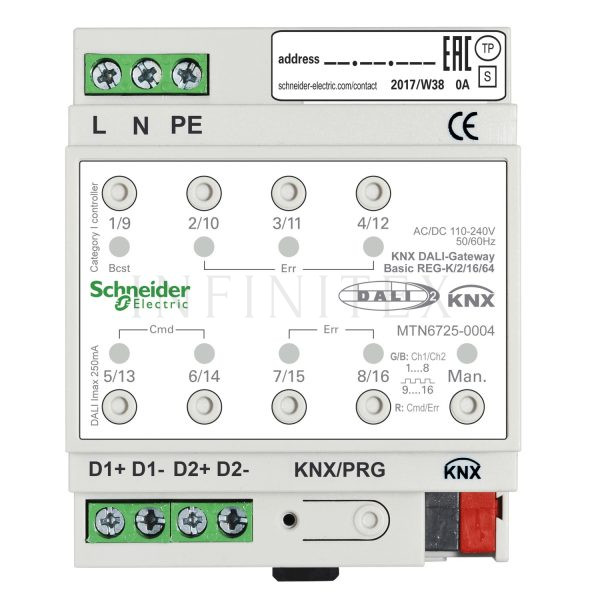

Schneider SpaceLogic KNX DALI Gateway Basic 2-Channel REG-K/2/16/64

The Schneider KNX DALI gateway 2-channel links your KNX line to DALI lighting. Therefore you switch, dim and colour-tune ballasts straight from a KNX push button or a visualisation.

What the gateway does

This model drives 2 DALI outputs. Each output carries up to 64 ballasts, and you sort them into 16 groups. So a floor of offices needs only one device.

An integrated DALI power supply feeds the ballasts, so you skip a separate supply. Moreover the unit works as a single-master controller to EN 62386 ed1 and ed2.

Colour and scenes

The gateway reads DT-8 ballasts, so you set colour temperature, RGB, HSV or RGBW. In addition it stores scenes that you call from KNX. For example, a meeting room drops to a warm preset with one press.

Diagnostics and safety

• Operating hours counter with a service alarm
• Individual lamp and ballast fault reporting over KNX
• Staircase timer, night mode and continuous operation
• Emergency lighting support to EN 62386-202
• Manual buttons on the front for commissioning

Installation

The unit clips onto a TH35 DIN rail to EN 60715. You connect KNX through a bus terminal. Finally you commission everything in ETS with the DCA app.

Also compare the Basic 1-Channel, Broadcast Master, Broadcast Extension, Gateway Pro before you order, because channel count and sensor support differ across the range.

Where this gateway fits

Offices, hotels and retail floors all run DALI luminaires today. A KNX DALI gateway 2-channel brings those luminaires under the same KNX logic as your blinds, your heating and your presence detectors. Therefore one visualisation shows the whole building, and one scene changes it. In addition, maintenance teams read lamp faults from the bus instead of walking the floor. Schneider publishes the full ETS database and the product manual on se.com.

Our team sizes the DALI lines with you and confirms lead times before you commit. So you order the right KNX DALI gateway 2-channel the first time.
