| Weight | 0.25 kg |
|---|---|
| Dimensions | 15 × 15 × 15 mm |
| Brand | |
| Dimension | 90 x 92 x 64 mm |
| Metrial | Thermoplastic |
| Mounting | Wall mounting |
| Nr. Of Input/Outputs | 64 |
| Power Consumption | 10mA |
| Product Category | Interfaces / Gateways |
| Protocol | KNX |
| Related Voltage | 110-220 V AC |

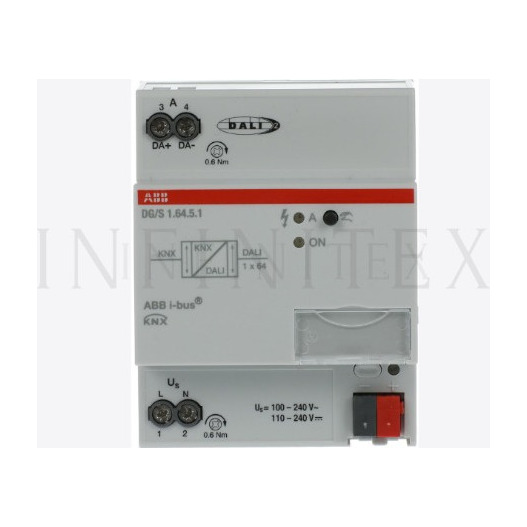

DG/S1.64.5.1, ABB DALI-Gateway 1 Channel premium, Comprehensive Overview
The ABB DG/S1.64.5.1 (2CDG110273R0011) stands as a cornerstone for modern smart building automation. Providing a robust interface between KNX installations and digital DALI lighting. As a DALI-2 certified single-master controller, it ensures maximum compatibility and reliability for future-proof installations.
Key Features and Functional Excellence:
- Comprehensive Device Management: Control up to 64 DALI devices through a single output. The gateway features an integrated DALI power supply, eliminating the need for external power modules and simplifying distribution board planning.
- Precision Color Control (DT8): Fully supports Device Type 8 (DT8), enabling advanced functions like Human Centric Lighting (HCL), Dim2Warm, and RGBW color mixing. This allows users to mimic natural daylight patterns to improve well-being and concentration.
- Emergency Lighting Support (DT1): Integration of DT1 self-contained emergency converters allows for automated functional and duration tests, with results transmitted directly back to the KNX bus for monitoring.
- Smart Energy Saving: Includes a standby switch-off function that works with KNX switch actuators to completely power down DALI ballasts when not in use, significantly reducing energy consumption.
- Flexible Programming: Configure up to 16 lighting groups and 16 scenes. The device also supports specialized functions like staircase lighting, slave mode, and forced operation for enhanced safety and automation.
Technical Specifications at a Glance:
- Mounting: DIN-rail (MDRC), 4 modular units width.
- Voltage: 100 – 240 V AC wide-range input.
- Connectivity: Screwless KNX bus connection and high-quality DALI terminals.
- Diagnostics: Extensive fault and error messaging available via the ABB i-bus® Tool for rapid commissioning and maintenance.
Whether you are designing a dynamic office environment or a luxury home, the ABB DG/S1.64.5.1 provides the technical flexibility and “Premium” performance required for world-class lighting design.
