● ABB
4–8 Weeks Delivery
ABB DALI-Gateway 2 Channel Premium
SKU: DG/S2.64.5.1
AED 2,291ex. VAT
VAT (5%) added at checkout · Bulk pricing available
Channels
Version
Basic
AED 1,870
Premium
AED 2,291

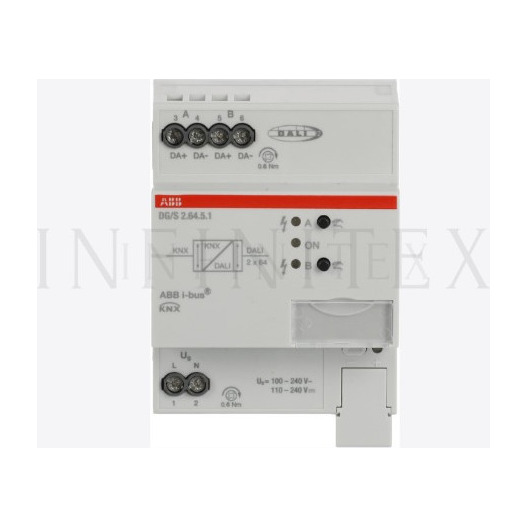

The ABB DG/S2.64.5.1
is a high-performance DALI Gateway Premium designed to seamlessly integrate DALI and DALI-2 lighting systems into the ABB i-bus® KNX network. This 1-fold MDRC device supports up to 128 DALI participants, offering precise individual, group, or broadcast control. With built-in support for Tunable White (HCL) and RGB(W) color control (DT8), it is the ideal solution for sophisticated lighting atmospheres in commercial and high-end residential projects.
ABB Supplier in the UAE
4–8 Weeks Delivery
2-year manufacturer warranty
KNX certified product
DG/S2.64.5.1, ABB DALI-Gateway 2 Channel premium, Comprehensive Overview
The ABB DG/S2.64.5.1 (2CDG110273R0011) stands as a cornerstone for modern smart building automation. Providing a robust interface between KNX installations and digital DALI lighting. As a DALI-2 certified single-master controller, it ensures maximum compatibility and reliability for future-proof installations.
Key Features and Functional Excellence:
- Comprehensive Device Management: Control up to 128 DALI devices through 2 separate output. The gateway features an integrated DALI power supply, eliminating the need for external power modules and simplifying distribution board planning.
- Precision Color Control (DT8): Fully supports Device Type 8 (DT8), enabling advanced functions like Human Centric Lighting (HCL), Dim2Warm, and RGBW color mixing. This allows users to mimic natural daylight patterns to improve well-being and concentration.
- Emergency Lighting Support (DT1): Integration of DT1 self-contained emergency converters allows for automated functional and duration tests, with results transmitted directly back to the KNX bus for monitoring.
- Smart Energy Saving: Includes a standby switch-off function that works with KNX switch actuators to completely power down DALI ballasts when not in use, significantly reducing energy consumption.
- Flexible Programming: Configure up to 16 lighting groups and 16 scenes. The device also supports specialized functions like staircase lighting, slave mode, and forced operation for enhanced safety and automation.
Technical Specifications at a Glance:
- Mounting: DIN-rail (MDRC), 4 modular units width.
- Voltage: 100 – 240 V AC wide-range input.
- Connectivity: Screwless KNX bus connection and high-quality DALI terminals.
- Diagnostics: Extensive fault and error messaging available via the ABB i-bus® Tool for rapid commissioning and maintenance.
Whether you are designing a dynamic office environment or a luxury home, the ABB DG/S2.64.5.1 provides the technical flexibility and “Premium” performance required for world-class lighting design.
| Brand | ABB |
| Dimension | 90 x 92 x 64 mm |
| Metrial | Thermoplastic |
| Mounting | Wall mounting |
| Nr. Of Input/Outputs | 128 |
| Power Consumption | 10mA |
| Product Category | Interfaces / Gateways |
| Protocol | KNX |
| Related Voltage | 110-220 V AC |
