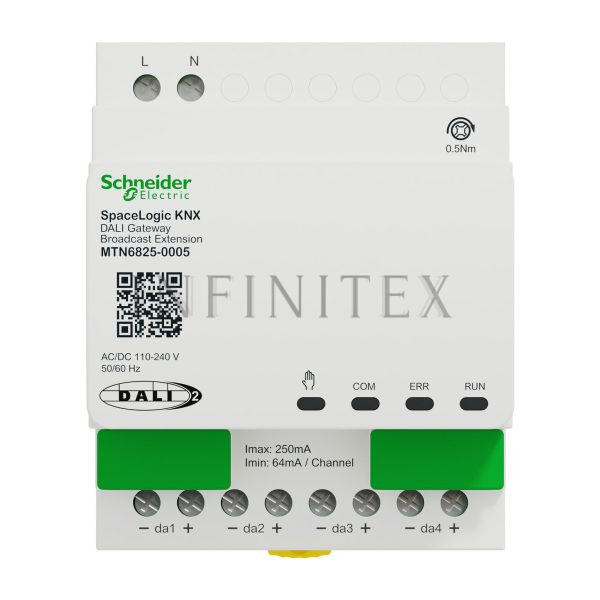

Schneider SpaceLogic KNX DALI Broadcast Extension 4-Channel

The Schneider KNX DALI broadcast extension links your KNX line to DALI lighting. Therefore you switch, dim and colour-tune ballasts straight from a KNX push button or a visualisation.

What the gateway does

This extension adds four more DALI channels to a broadcast master. Each channel drives up to 32 ballasts. Therefore a large floor grows without a second gateway.

You pair it with the DALI Broadcast Master. A master accepts two extensions in total.

Colour and scenes

The gateway reads DT-8 ballasts, so you set colour temperature, RGB, HSV or RGBW. In addition it stores scenes that you call from KNX. For example, a meeting room drops to a warm preset with one press.

Diagnostics and safety

• Operating hours counter with a service alarm
• Individual lamp and ballast fault reporting over KNX
• Staircase timer, night mode and continuous operation
• Emergency lighting support to EN 62386-202
• Manual buttons on the front for commissioning

Installation

The unit clips onto a TH35 DIN rail to EN 60715. You connect KNX through a bus terminal. Finally you commission everything in ETS with the DCA app.

Also compare the Basic 1-Channel, Basic 2-Channel, Broadcast Master, Gateway Pro before you order, because channel count and sensor support differ across the range.

Where this gateway fits

Offices, hotels and retail floors all run DALI luminaires today. A KNX DALI broadcast extension brings those luminaires under the same KNX logic as your blinds, your heating and your presence detectors. Therefore one visualisation shows the whole building, and one scene changes it. In addition, maintenance teams read lamp faults from the bus instead of walking the floor. Schneider publishes the full ETS database and the product manual on se.com.

Our team sizes the DALI lines with you and confirms lead times before you commit. So you order the right KNX DALI broadcast extension the first time.
