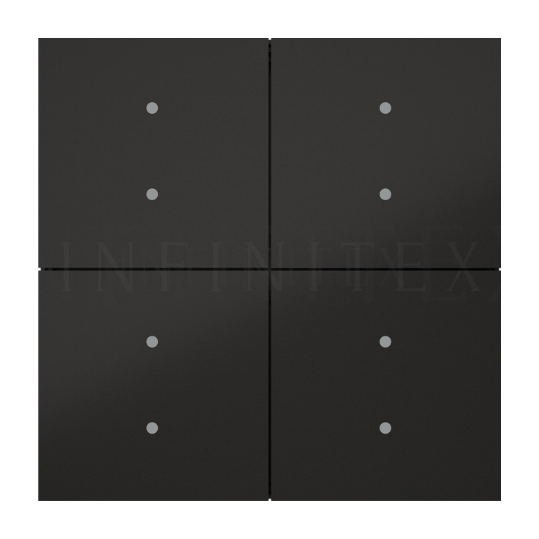

Optimus EDGE KNX Switch Sensor 4-Gang / 8 Buttons
The Optimus KNX switch sensor with 8 buttons is the largest keypad in the EDGE series: 4 gangs, 8 buttons and up to 16 functions from a single frameless plate in Black Matte. Ideal for living rooms, master bedrooms and hotel suites where lighting circuits, blinds and scenes all need to be reachable from one point. Bus powered, fully parameterised in ETS, with RGB status LEDs and customisable icons. Ordering code OPT-SS2200-111-BL.
Optimus KNX switch sensor 4-gang / 8 buttons — OPT-SS2200-111-BL
When a room has many circuits to control, this is the plate that keeps the wall clean. This Optimus KNX switch sensor provides 8 buttons and up to 16 functions in a single frameless Black Matte unit, replacing what would otherwise be two or three separate switch plates.
Built for the main rooms
Living rooms, master bedrooms and hotel suites typically need lighting circuits, blinds, and at least two or three scenes within reach of the door. With 8 buttons on one plate, each with an RGB status LED and a customisable icon, the occupant can read the state of the room at a glance. For smaller rooms, the 4-button EDGE model uses the same design language.
What each button of the Optimus KNX switch sensor can do
- Switching and light-level adjustment (dimming)
- Shutter, blind and jalousie control
- Value transmission, array value sender and value dimmer
- Scene management and recall
- Logic applications
- RGB status LED feedback and customisable icons
Ergonomics that carry across the range
Square buttons operate up/down and rectangular buttons operate left/right, so the physical shape tells the user what the button does. The EDGE series runs from 1 to 8 buttons in White, Black Matte, Silver and Anthracite, in plastic and metal versions — one design language across an entire project.
Installation and commissioning
The device is powered directly from the KNX bus, with no auxiliary supply, and is configured in ETS. The range is certified by the KNX Association, and Optimus is one of the few manufacturers with its own KNX stack.
Optimus KNX switch sensor — technical specifications
- Series: Optimus EDGE Automation Switch Series
- Protocol: KNX (KNX-TP)
- Configuration: ETS
- Buttons: 4-gang / 8 buttons — up to 16 functions
- Accessory level: Basic (code 111)
- Colour: Black Matte (BL)
- Power supply: KNX bus powered
- Mounting: Flush, in-wall box
Infinitex is the exclusive Optimus distributor in the UAE. Browse the full KNX product range or ask us for project pricing.
| Series | Optimus EDGE Automation Switch Series |
| Protocol | KNX (KNX-TP) |
| Buttons | 4-gang / 8 buttons — up to 16 functions |
| Functions | Switching, Dimming, Blinds, Value sender, Scenes, Logic |
| Status LED | RGB status LED |
| Accessory Level | Basic (111) |
| Power Supply | KNX bus powered |
| Mounting | Flush — in-wall box |
| Configuration | ETS |
| Brand | Optimus |
| Color | White, Silver, Stainless Steel, Anthracite, Black |
| Brand | Optimus |
