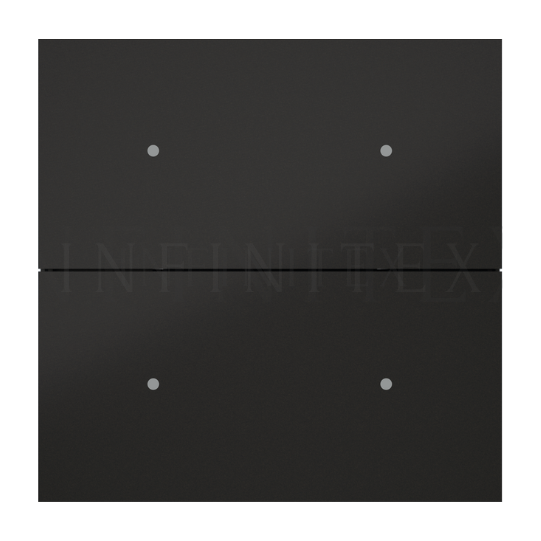

Optimus EDGE KNX Switch Sensor 2-Gang / 4 Buttons
The Optimus EDGE switch sensor is a frameless 2-gang / 4-button KNX wall switch in Black Matte. Each button pair can switch, dim, drive blinds, send values or recall scenes, with up to 16 functions configured entirely in ETS. An RGB status LED and customisable icons make the state of the room readable at a glance. OPT-SS1100-111-BL is the basic model — bus powered, no auxiliary supply required.
Optimus EDGE switch sensor 2-gang / 4 buttons — OPT-SS1100-111-BL
The Optimus EDGE switch sensor is the flagship wall control of the EDGE Automation Switch Series: a frameless, modular design that adapts to the room instead of interrupting it. This model provides 2 gangs and 4 button functions in a Black Matte finish, and connects directly to the KNX bus.
Modular by design
Models across the series range from 1 to 8 buttons and support up to 16 functions, so the same design language runs from a simple bedside switch to a full living-room keypad. Rectangular buttons operate left/right, square buttons operate up/down — an ergonomic detail that makes the switch readable without looking at it. Need more circuits on one plate? See the 8-button EDGE model.
What each button of the Optimus EDGE switch sensor can do
- Switching and light-level adjustment (dimming)
- Shutter, blind and jalousie control
- Value transmission, array value sender and value dimmer
- Scene recall and scene management
- Logic applications
- RGB status LED feedback
- Customisable icon set
Frameless, in four finishes
The EDGE series is available in White, Black Matte, Silver and Anthracite, with metal and touch-button options — so a single project can keep one control language across apartments, corridors and back-of-house. This SKU is the Black Matte plastic version.
Engineered for the installer
The device is powered directly from the KNX bus — no auxiliary supply and no extra wiring. All parameters, icons and functions are configured in ETS, and the range is KNX-certified by the KNX Association.
Optimus EDGE switch sensor — technical specifications
- Series: Optimus EDGE Automation Switch Series
- Protocol: KNX (KNX-TP)
- Configuration: ETS
- Buttons: 2-gang / 4 buttons
- Accessory level: Basic (code 111)
- Colour: Black Matte (BL)
- Power supply: KNX bus powered
- Mounting: Flush, in-wall box
Infinitex is the exclusive Optimus KNX distributor in the UAE. Browse the full KNX product range or ask us for project pricing.
| Series | Optimus EDGE Automation Switch Series |
| Protocol | KNX (KNX-TP) |
| Buttons | 2-gang / 4 buttons |
| Functions | Switching, Dimming, Blinds, Value sender, Scenes, Logic |
| Status LED | RGB status LED |
| Accessory Level | Basic (111) |
| Power Supply | KNX bus powered |
| Mounting | Flush — in-wall box |
| Configuration | ETS |
| Brand | Optimus |
| Color | White, Silver, Stainless Steel, Anthracite, Black |
| Brand | Optimus |
