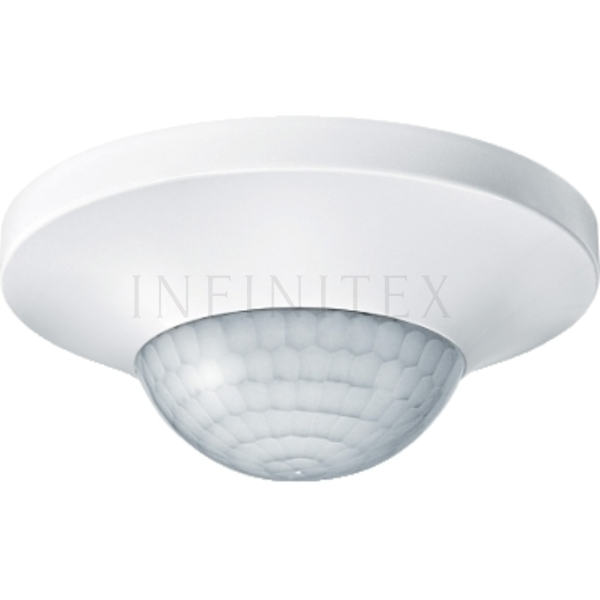

Schneider KNX ARGUS Presence Detector 360 Ceiling Master/Slave, White

Schneider KNX ARGUS Presence Detector 360 Ceiling Master/Slave, White — MTN630819

The KNX Presence Detector joins the KNX bus and works inside a Schneider Electric KNX system. Because it speaks native KNX, it drops into any ETS project without extra gateways. Unlike the Basic model, this version adds master/slave operation, so several detectors can share coverage and switching logic across one space.

Why choose this KNX Presence Detector

First, it configures fully in ETS with master, slave, monitoring, safety-pause and disable modes. Then, six detection levels split the room into 136 zones and 544 switching segments, so it reacts to fine movement, not just large motion. In addition, five presence and movement blocks each trigger up to four functions, giving flexible control over lighting, blinds and heating from one device.

Key features

• 360-degree passive infrared detection, radius up to 7 m at a 2.5 m mounting height
• Master, slave, monitoring, safety-pause and disable operating modes
• Adjustable internal brightness sensor, 10–2000 lux, plus support for an external KNX light sensor
• Five movement blocks with up to four functions each; four independently adjustable movement sensors
• Self-adjusting staircase timer
• Ceiling mounting in a size-60 mounting box; bus connecting terminal and supporting plate included
• White finish

Where to use it

You can fit this KNX Presence Detector in residential and commercial KNX projects, especially where several detectors need to share one switching zone. Also, it pairs well with Schneider actuators, sensors and interfaces. Therefore, you build one coherent system. Furthermore, it keeps wiring simple and service easy.

Specifications and setup

You configure the device in ETS. Also, it belongs to the wider Schneider KNX range at Infinitex. Thus, you can source a full system from one place.

• Brand: Schneider Electric
• Reference: MTN630819
• Protocol: KNX (KNX-TP)
• Range: ARGUS 360
• Configuration: ETS

Infinitex supplies Schneider Electric KNX products in the UAE. Moreover, we offer project pricing and ETS support.
