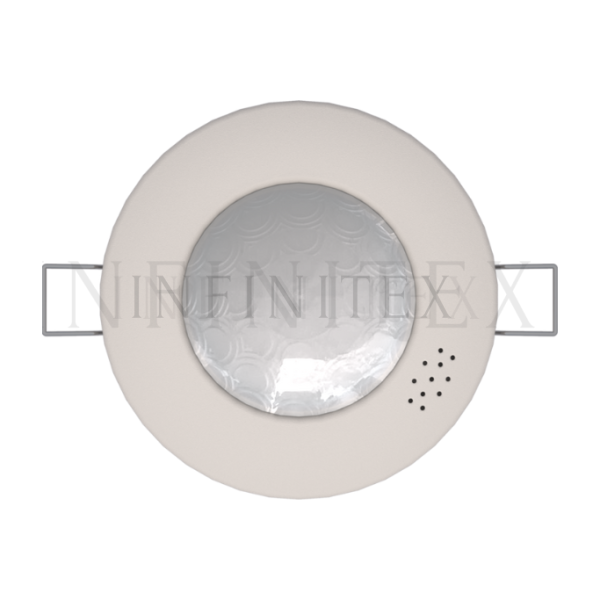

Optimus OPT-MSH-212: KNX Advanced High Ceiling Multi-Sensor

 Designed to be the sensory hub of your smart building. By integrating 2 essential sensors into a single, discreet device, the OPT-MSH-212 provides the real-time data necessary to automate lighting and energy management systems with unparalleled precision in long corridors. Whether it is for a high-end residential project or a large-scale commercial office, this Advanced High Ceiling Multi-Sensor ensures that responds dynamically in the high level areas up to 12 meter height in 30 meter diameter, maximizing both comfort and energy efficiency.

2-in-1 Sensing Technology

The OPT-MSH-212 stands out by consolidating multiple monitoring functions, reducing the need for several separate devices:
  • High-Sensitivity Presence Detection: Using advanced Passive Infrared (PIR) technology, it detects the finest movements, ensuring lights and climate control stay active as long as a room is occupied.
  • Precision Brightness (Lux) Sensor: Supports Constant Light Control, which automatically adjusts artificial lighting levels based on incoming natural daylight, significantly cutting electricity costs.
  • Integrated Temperature Monitoring: Provides accurate thermal data to the KNX bus, allowing for seamless climate automation without extra wall thermostats.
  • Humidity Sensing: Tracks indoor air quality and moisture levels, ensuring a healthy and comfortable atmosphere for occupants at all times.

Seamless Integration & Smart Control

As a native KNX device, the OPT-MSH-212 is fully programmable via the ETS (Engineering Tool Software). Optimus High Ceiling Multi-Sensor, doesn’t just collect data—it acts on it. With built-in logic functions, the sensor can trigger complex “scenes.” For example, it can be programmed to activate a “Working Scene” only when motion is detected AND natural light is below 300 lux, while simultaneously adjusting the AC based on the current room temperature.

Designed for Modern Architecture

The OPT-MSH-212 features a minimalist, low-profile design that blends perfectly into any ceiling.
  • Flexible Installation: Supports both Flush Mounting for a clean, built-in look and Surface Mounting for versatile placement.
  • Bus Powered: No external power supply is required; the device draws power directly from the KNX bus line, simplifying the wiring process.
  • Reliable Performance: Engineered to operate flawlessly in temperatures ranging from -5 °C to +45 °C.

Technical Specifications at a Glance

  • Protocol: KNX Standard
  • Detection Type: Presence, Motion, Brightness.
  • Configuration: ETS Professional
  • Power Supply: 21-30 V DC via KNX Bus
  • Mounting Height: 9~12m
  • Detecting range: 23~30m
  • Protection Class: IP20 (Indoor use)
