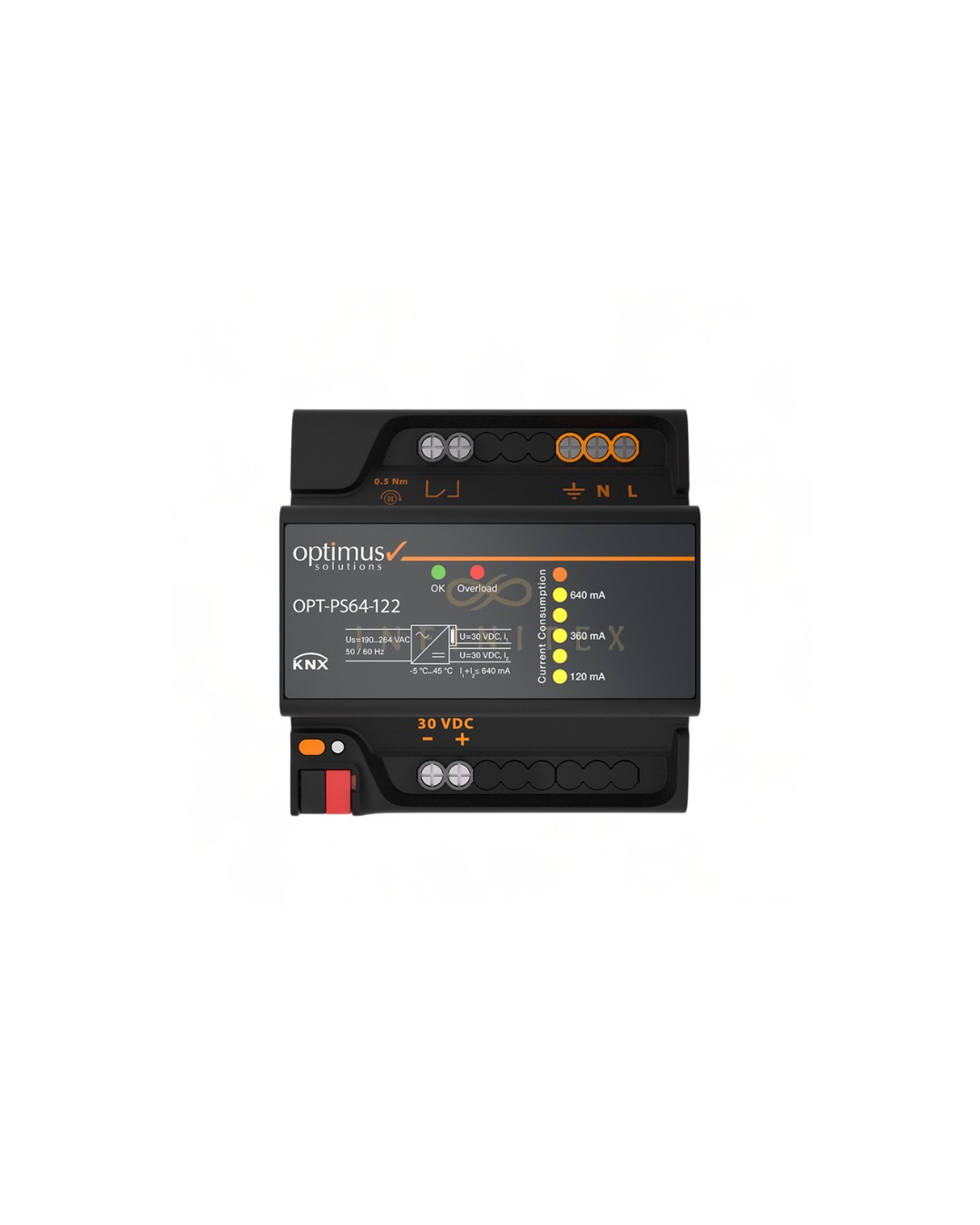

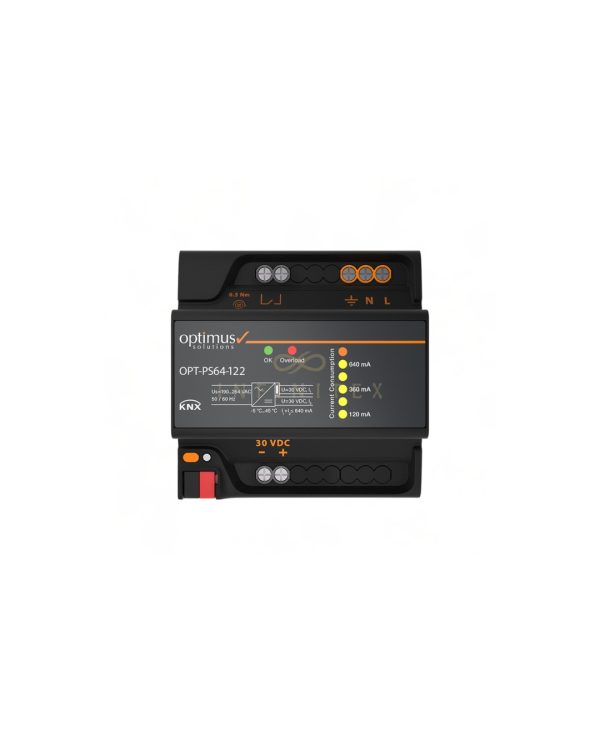

Optimus KNX Power Supply 640mA
- 30 VDC SELV output
- 320 mA/640 mA current option
- Integrated choke circuit
- Auxiliary output (OPT-PS64-122)
- Advanced protection (short circuit, overload, reverse connection)
- LED status indicators
- Permanent type relay output (OPT-PS64-122)
- Instantaneous current and temperature monitoring
- Automatic error reset
- Compact design
High Performance and Safety
The OPT-PS64-122 model with 640 mA output features an integrated choke circuit that directly feeds the primary KNX line, while also providing an additional auxiliary output for another line. The 320 mA OPT-PS32-111 model is ideal for compact systems. Both models include advanced protection mechanisms that automatically cut off output voltage in case of short circuit, overload, reverse polarity, voltage fluctuation, and high temperature. The system periodically checks and resumes operation once the fault is cleared.
Real-time Monitoring and Visual Feedback
The OPT-PSxx-1yy series power supplies provide real-time device status, current draw, and possible error information to the user through LED indicators on the front panel. This allows easy monitoring of system health and quick response to issues. The OPT-PS64-122 model includes a latching relay that changes contact status when the mains voltage is interrupted, enabling information transfer to BMS systems.
Easy Integration and Reliable Operation
Optimized for fast installation, reliable operation, and long service life in KNX systems, the OPT-PSxx-1yy series offers high performance in energy efficiency and system security, making it an ideal power solution for building automation projects.
