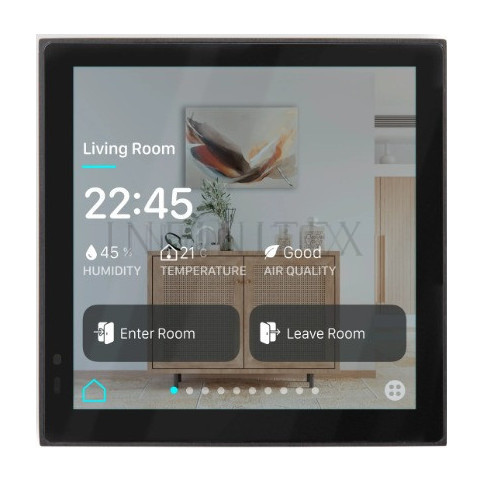

Core Eclipse KNX Room Controller 4″ Obsidian Black
The Core Eclipse KNX room controller packs a 4″ HD touch display and five sensors into a device only 11 mm thick. It combines a full room thermostat with CO2, temperature, humidity, proximity and ambient-light measurement, and controls switching, dimming, RGB/tunable white, blinds, scenes, AC and audio over KNX-TP. Up to 12 pages and 64 control elements are configured entirely in ETS. CR-ECP-04-KNX-OBL is the Obsidian Black finish.
Core Eclipse KNX room controller 4″ — CR-ECP-04-KNX-OBL
The Eclipse KNX room controller is designed to be the most complete touch panel for a single room: one digital control surface, equipped with five sensors, that replaces the thermostat, the scene keypad and the air-quality display. Its HD screen and premium finishes sit only 11 mm off the wall, so it disappears into the room rather than dominating it.
The Eclipse KNX room controller as a thermostat
Eclipse controls HVAC directly through built-in thermostat logic, an internal temperature sensor and a humidity sensor. Heating, cooling or combined heating & cooling modes are supported, with 2-point, switching PI (PWM) or continuous PI control, four operating modes (Comfort, Standby, Night, Protection), window-contact logic, fan-stage control and an additional heating/cooling stage.
Air quality you can act on
An integrated CO2 sensor measures air quality in the room and displays it on the main page or a dedicated air-quality page. Configurable thresholds classify air as excellent, average or poor, and a KNX object can trigger ventilation or alarms automatically when the poor threshold is crossed.
Adaptive display and proximity wake-up
The ambient-light sensor adjusts backlight brightness automatically, while the proximity sensor wakes the display as a user approaches — bright when needed, discreet in a dark bedroom.
Extensive KNX applications
- Switching, dimming, RGB/RGBW and tunable white control
- Blinds, shutters and jalousie with position and slat feedback
- Scenes — 8 scene outputs, scene numbers 1–64, save on long press
- Thermostat, slave thermostat and air-conditioner (gateway) control
- Energy display, air quality and audio control pages
- Up to 12 pages and 64 control elements, with 81 selectable icons
For whole-apartment supervision rather than a single room, the larger Core Surface 10″ KNX touch panel adds a home-controller licence and IP integration.
Eclipse KNX room controller — technical specifications
- Protocol: KNX-TP, programmed with ETS
- Display: 4″ IPS TFT, 720 × 720 px, 400 cd/m², HD
- Processor: Arm Cortex-A7 900 MHz, 512 MB DDR3, embedded Linux
- Sensors: temperature (±0.2 °C), humidity (±2 %), CO2, proximity & light
- Dimensions: 86 × 86 × 11 mm
- Power: 12–30 V DC (KNX auxiliary supply or separate PSU)
- Consumption: < 70 mA from auxiliary supply, < 5 mA from KNX bus
- Installation: German IEC/EN 60670 in-wall box
- Finish: Obsidian Black
Infinitex is a KNX specialist distributor in the UAE. We support integrators with ETS databases, specification advice and project pricing across the full KNX product range.
| Protocol | KNX (KNX-TP) |
| Display | 4″ IPS TFT, 720 x 720 px, 400 cd/m² |
| Sensors | Temperature, Humidity, CO2, Proximity, Light |
| Thermostat | Built-in RTC — heating & cooling, 4 operating modes |
| Processor | Arm Cortex-A7 900 MHz, 512 MB DDR3, Embedded Linux |
| Pages / Elements | Max. 12 pages, Max. 64 control elements |
| Power Supply | 12–30 V DC |
| Power Consumption | < 70 mA auxiliary, < 5 mA KNX bus |
| Dimensions | 86 x 86 x 11 mm |
| Mounting | Flush — German IEC/EN 60670 in-wall box |
| Finish | Obsidian Black |
| Configuration | ETS |
| Brand | Core |
| Brand | CORE |
