ABB Tenton KNX Room Controller 6-fold Slave | SBS/U6.0.1

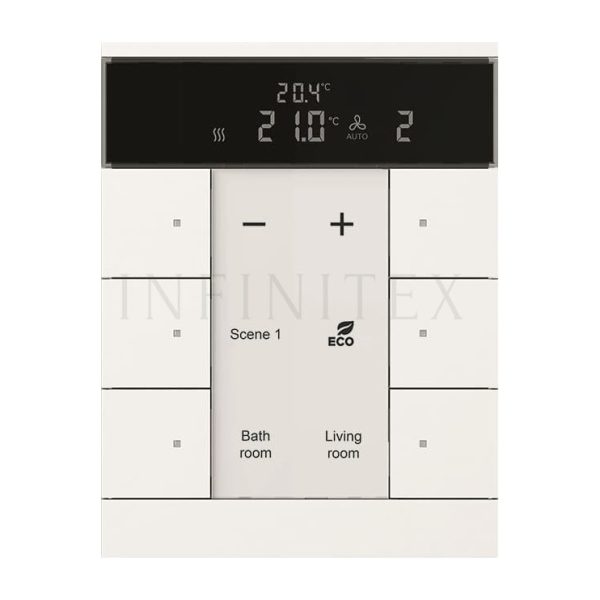

ABB 6-fold Tenton slave room controller — SBS/U6.0.1

The ABB 6-fold Tenton slave room controller is the companion unit to a Tenton master in the same room. It gives a second, fully featured operating point — six pushbuttons plus the built-in temperature, humidity and CO2 sensors — while the master keeps ownership of the heating, ventilation and fan-coil control logic. This makes it ideal for larger rooms and suites that need a control point at two doors.

What the 6-fold Tenton slave adds

Because the 6-fold Tenton slave mirrors the master rather than duplicating its logic, both plates always show the same setpoint, mode and room readings. Residents can adjust temperature or recall a scene from either position and the system stays in sync. The slave measures the indoor climate too, so placement is flexible.

3-in-1 sensing

• Temperature sensor
• Humidity (moisture) sensor
• CO2 / air-quality sensor
• Six pushbutton operating points for switching, dimming, blinds, values and scenes

Colour concept and finishes

Tenton’s colour concept (yellow = lighting, blue = blind, orange = room temperature, magenta = scene, white = neutral) makes each button readable at a glance. Available in Studio White, Aluminium Silver, Studio White Matt and Black Matt, with flush mounting into a European round or UK square box. It pairs with the 6-fold Tenton master (SBR/U6.0.1).

Where the 6-fold Tenton slave fits

A typical layout places the Tenton master by the main door and the 6-fold Tenton slave by the bed or a second entrance, so the room can be controlled from either side without walking across it. Because the slave shares the master’s schedule, comfort and eco modes, guests and residents get a consistent experience wherever they stand. In hospitality and residential projects this two-point setup is the most common reason integrators specify a slave alongside every master.

Technical specifications at a glance

• Range: ABB Tenton
• Type: Room temperature controller (slave) with CO2 & humidity sensor
• Protocol: KNX (KNX-TP), integrated bus coupler
• Operating points: 6-fold
• Installation: Flush mounted (European round / UK square with adapter)
• Protection: IP20
• Dimensions: 117.1 × 90.1 × 13.5 mm
• Operating temperature: −5 °C … +45 °C
• Configuration: ETS

Infinitex supplies ABB i-bus KNX products in the UAE with ETS support and project pricing. Browse the full KNX product range.

Compatibility

• Bus system: KNX twisted pair, to EN 50090 and ISO/IEC 14543-3.
• Configuration: ETS 5 or ETS 6. The manufacturer publishes the product database free of charge.
• Interoperable with KNX-certified devices from any manufacturer. ABB, Schneider, Siemens, Gira, Jung and Theben all sit on the same bus, so this unit works inside a mixed-brand installation.
• Bus supply: 21-30 V DC from a standard KNX power supply.
• Room temperature control: the setpoint and the measured value travel over the bus to KNX valve, fan-coil or underfloor heating actuators. No proprietary cabling.
• Not compatible with Zigbee, Z-Wave, Wi-Fi-only or Matter-only devices unless a KNX gateway is added.
