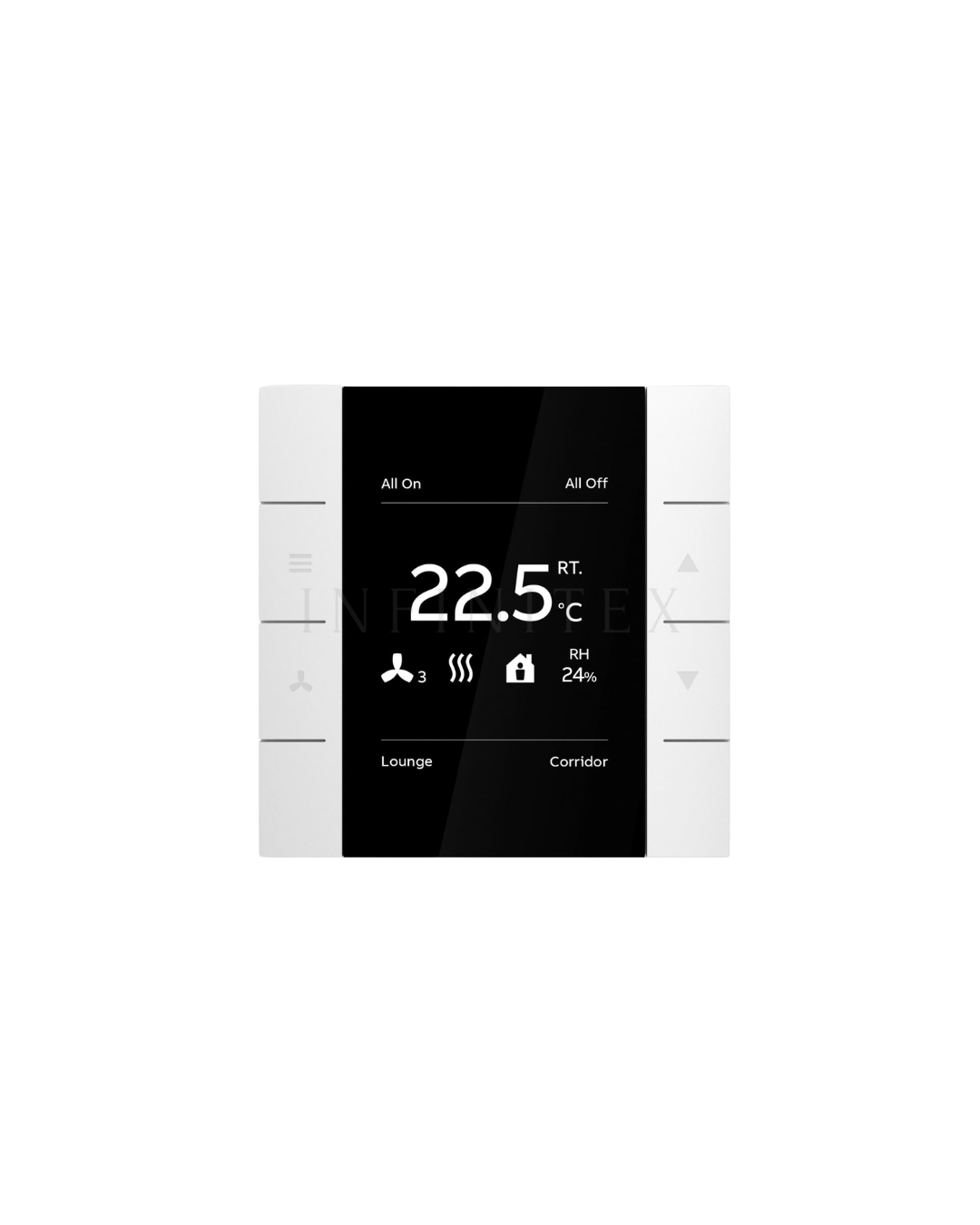

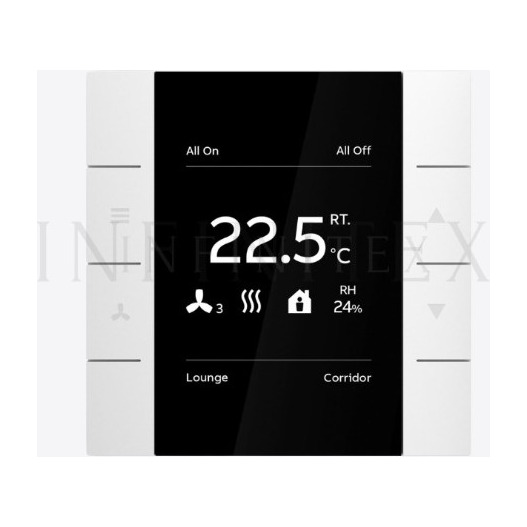

ABB KNX Yurika RTC switch sensor with 2/4-fold

• Integrated Multi-Color LCD Screen: This specific equipment incorporates a sharp digital LCD screen for dynamic status indications. Furthermore, you can configure the digital labeling backlight in five distinct color profiles including red, white, blue, orange, and green. As a result, you ensure clear icon readability for the user, which eliminates old-fashioned physical paper label inserts completely.
• Flexible 2/4-Fold Control Layouts: The customizable rockers of this ABB KNX Yurika RTC switch sensor with 2/4 fold allow for left and right switching configurations with lockable parameters. In addition, you can assign specialized behaviors like stepping switches, lighting dimming curves, or direct value sending objects onto the buttons. Therefore, the hardware provides exceptional physical flexibility for customized building operations across residential spaces and luxury hotels.
• Frameless Premium Architecture: The elegant design profile of this switch utilizes an 86 mm x 86 mm frameless finish in a rich white aesthetic. Moreover, the integrated bus coupling unit allows the hardware to mount cleanly into standard UK square or European backboxes. At the same time, an integrated energy-saving function reduces standby bus consumption, keeping green energy goals fully intact.
• Robust Bus Topology Monitoring: The standard twisted pair (KNX TP) network powers the entire unit’s internal circuitry safely. Consequently, the module diminishes wiring complexity behind your drywall partitions, accelerating initial site hardware implementation tasks. Finally, this smart construction utilizes the standard ETS database architecture, which allows automation engineers to execute precise system parameter tuning diagnostics remotely

Compatibility

• Bus system: KNX twisted pair, to EN 50090 and ISO/IEC 14543-3.
• Configuration: ETS 5 or ETS 6. The manufacturer publishes the product database free of charge.
• Interoperable with KNX-certified devices from any manufacturer. ABB, Schneider, Siemens, Gira, Jung and Theben all sit on the same bus, so this unit works inside a mixed-brand installation.
• Bus supply: 21-30 V DC from a standard KNX power supply.
• Room temperature control: the setpoint and the measured value travel over the bus to KNX valve, fan-coil or underfloor heating actuators. No proprietary cabling.
• Not compatible with Zigbee, Z-Wave, Wi-Fi-only or Matter-only devices unless a KNX gateway is added.
