| Weight | 0.06 kg |
|---|---|
| Dimensions | 23 × 92 × 65 mm |
| Brand | |
| Color(s) | White |
| Dimension | 40 X 12 X 39 mm |
| Mounting | Wall mounting |
| Nr. Of Input/Outputs | 2 |
| Power Consumption | 10mA |
| Product Category | Binary and Analogue Inputs |
| Protocol | KNX |
| Related Voltage | 30 V DC |

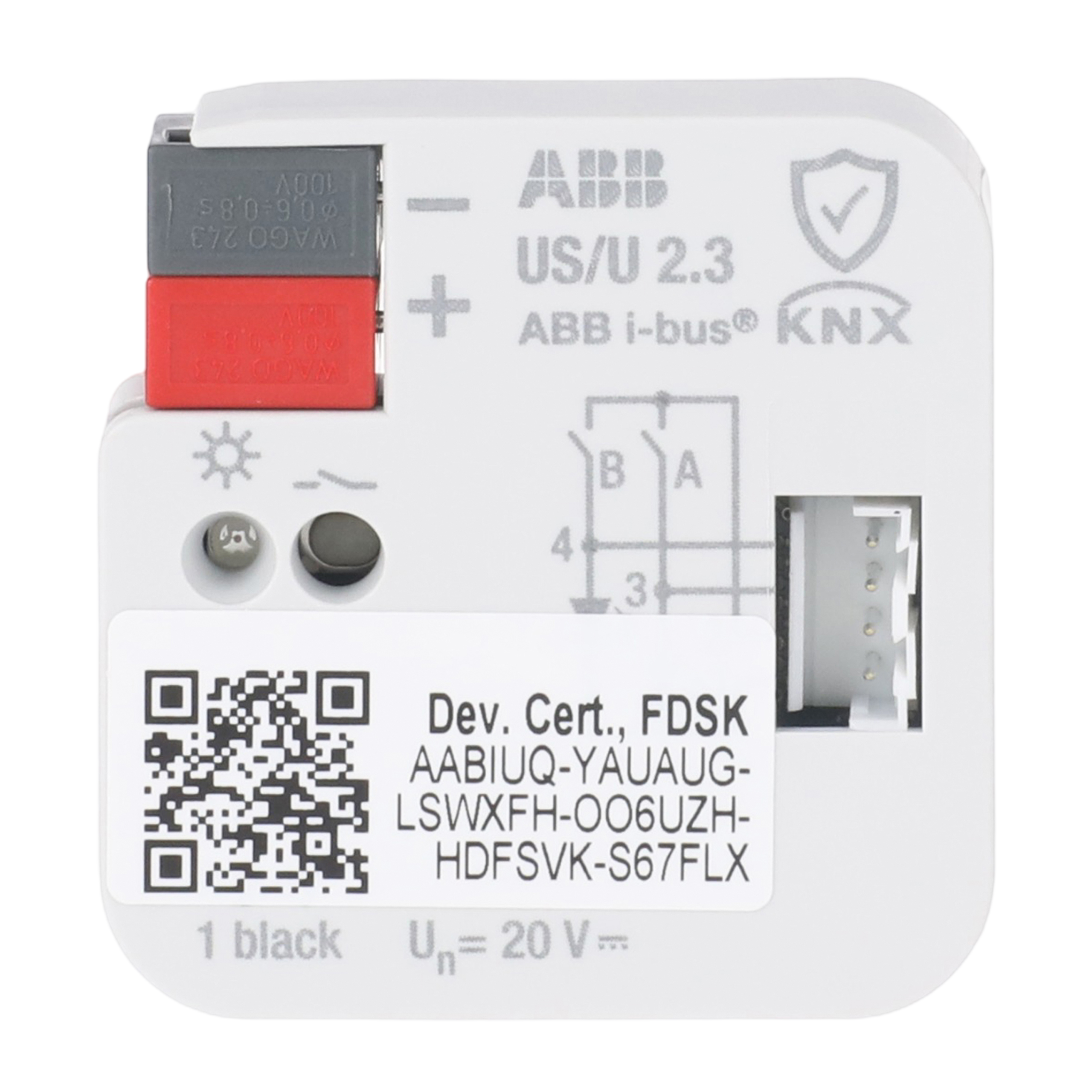

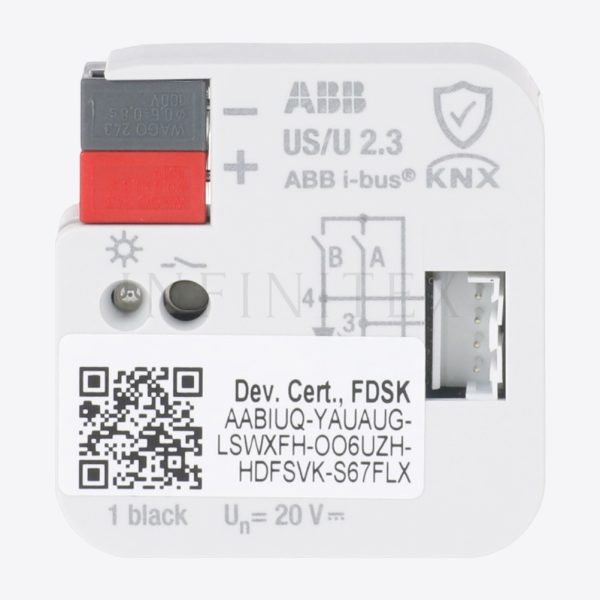

Secure Flush-Mounted Signal Control with ABB KNX Universal Interface US/U2.3
The ABB KNX Universal Interface US/U2.3 (2CDG110308R0011) provides an intelligent bridge between classic electrical mechanisms and advanced smart building controls. Primarily, this hardware performs its tasks completely concealed inside a standard 60 mm flush-mounted wall junction box. Consequently, this device allows designers to preserve traditional switch designs while expanding system automation capabilities smoothly.
Key Technical Features and Benefits:
- Integrated Cybersecurity Protection: This modern equipment incorporates the robust KNX Data Secure protocol natively. Furthermore, this encryption layer protects the transmitted binary telegrams against data manipulation and unauthorized system infiltration. As a result, you ensure total operational safety for decentralized points in commercial facilities and high-end residential projects.
- Flexible Channel Parameterization: The internal architecture of this ABB KNX Universal Interface allows you to parameterize each channel as an input or an output independently. In addition, you can read a potential-free contact on channel one while using channel two to power a physical status display lamp. Therefore, the device offers excellent flexibility for custom control sequences in tiny installation slots.
- Advanced ETS Application Logic: The application program of this versatile ABB KNX Universal Interface delivers sophisticated functions directly within the ETS suite. Moreover, these parameters include complex behaviors for blind management, dimming controls, cyclic monitoring, and multi-stage switching sequences. At the same time, the module manages internal debouncing algorithms to prevent false telegram triggers caused by contact vibrations.
- Bus Powered Connectivity: The main standard KNX bus connection feeds the electronic circuits directly without requiring extra auxiliary transformers. Consequently, the module eliminates redundant wires inside crowded wall spaces, which speeds up initial hardware placement significantly. Finally, this optimized design includes pre-installed color-coded connection cables to reduce deployment errors for your field technicians.
- Analog Sensor Capabilities: This ABB KNX Universal Interface supports incoming signals ranging from 0 to 10 V or 4 to 20 mA. Moreover, it converts these values effortlessly to transmit clean physical measurements across the building network. Accordingly, it offers an ideal path for adding external climate sensors or specialized technical inputs onto the main bus.
