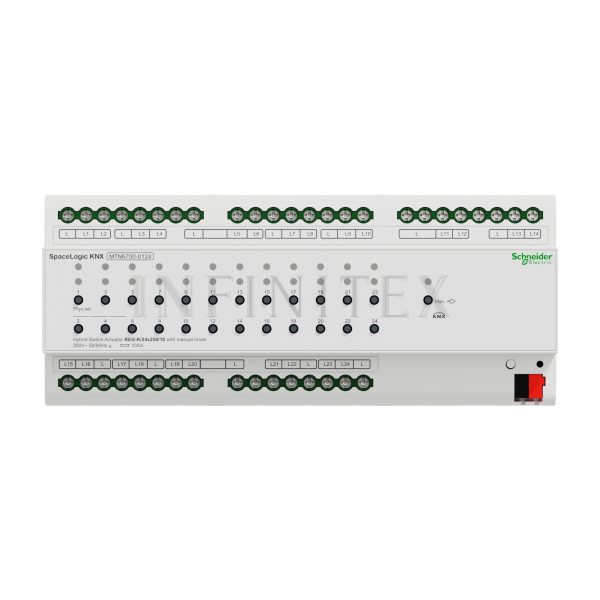

Schneider SpaceLogic KNX Hybrid Actuator 24 Channels REG-K/24×250/10

The Schneider KNX hybrid actuator 24 channels switches loads and drives blinds from one DIN-rail unit. Therefore you cover lighting, shading and fan coils without stacking separate actuators.

One device, many jobs

You may switch 24 independent loads. Alternatively you may run up to 12 blinds or roller shutters. You may also control 6 fan coils with three speeds, or the matching two-pipe and four-pipe valves.

Every channel stays freely configurable, so you decide the mix in ETS and change it later.

Manual mode on the front

Each channel carries a switch on the housing. So an electrician tests a circuit before the KNX program even exists. Moreover a green LED confirms that the device is ready once the application loads.

Software functions

• Scene, logic, threshold and preset objects per channel
• Staircase timer with delay and flashing
• Safety, forced and locking functions
• Defined relay state after a bus failure or an ETS download
• Status feedback for every channel

Installation

The actuator mounts on a TH35 DIN rail to EN 61715. You wire KNX through a bus connection terminal. As a result the install stays quick and tidy.

Also compare the 4 Channels, 8 Channels, 16 Channels versions, because the channel count changes how many blinds and fan coils one unit handles.

Where this actuator fits

Apartments, hotel rooms and small offices rarely need one actuator per trade. A KNX hybrid actuator 24 channels merges lighting, shading and fan coil control into a single DIN-rail slot. Therefore the panel stays smaller, the wiring stays simpler, and the budget drops. In addition you keep spare channels for later changes. Schneider hosts the ETS application and the full manual on se.com.

Our team checks your load list and confirms lead times before you order. So the right KNX hybrid actuator 24 channels reaches site on schedule.
