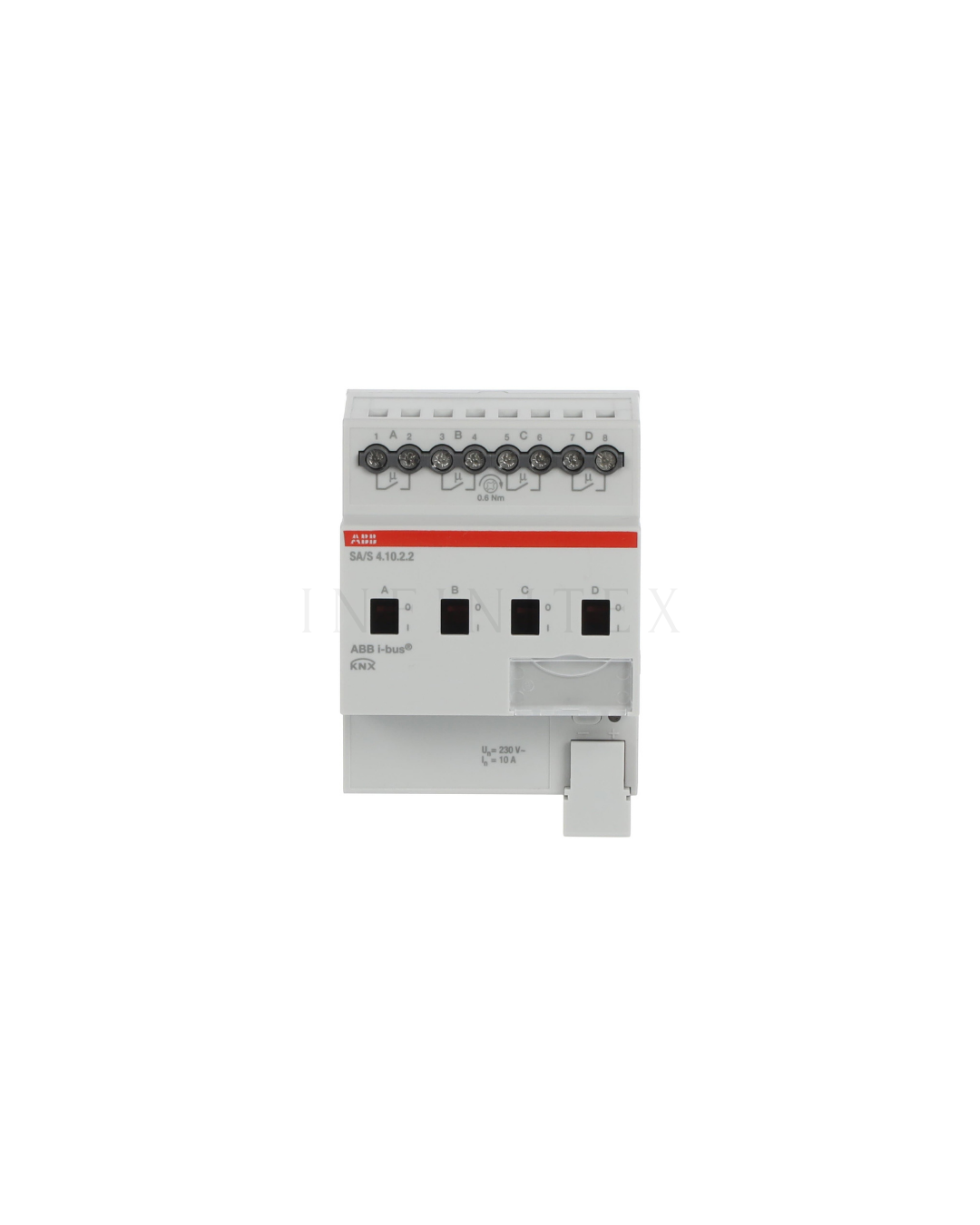

ABB Switch Actuator 4 fold, 10A

Reliable Multi-Load Control with ABB SA/S4.10.2.2 KNX Switch Actuator 4 Fold

The ABB SA/S4.10.2.2 (2CDG110258R0011) is a switch actuator 4 fold, 10 and versatile solution for modern building automation. It provides precise control over electrical loads through the standardized KNX bus. Furthermore, this “Standard” series actuator is recognized globally for its robust performance in both residential and commercial environments.

Key Features and Benefits:

• Four Independent Outputs: The device is equipped with 4 potential-free contacts. Consequently, this allows for the separate switching of four distinct electrical circuits within a single compact module.
• High Surge Current Capability: Specifically, the 10 A rated current is optimized for loads with high inrush currents. In addition, it meets the stringent EN 60669 standards for fluorescent lamp loads (AX), which ensures longevity even in demanding lighting setups.
• Manual Operation & Local Status: Moreover, each channel features a manual toggle switch. This enables onsite testing directly at the distribution board without requiring bus voltage. At the same time, the physical position of the toggle serves as a clear status display.
• Bus Powered Efficiency: The device is powered entirely via the KNX TP bus. As a result, it requires no additional external power supply, which effectively simplifies wiring and reduces installation costs.
• Flexible Programming: Finally, through ETS, users can configure advanced functions such as logic gates, staircase lighting, and safety priorities. This level of customization ensures the device adapts to any project requirement.

Technical Specifications:

• Mounting: DIN-rail (MDRC), 4 modular units width (70 mm).
• Voltage: 230 V AC operating voltage for contacts.
• Protection: IP 20 rated for indoor installation.
• Load Types: Compatible with resistive, inductive (motors), and capacitive loads.

The ABB SA/S4.10.2.2 combines high channel density with the rugged reliability expected from ABB’s German engineering, making it an essential component for any professional KNX installation.
