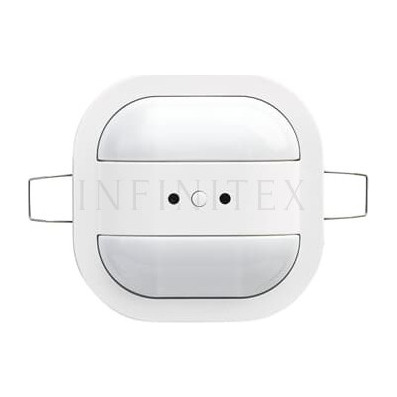

ABB KNX Presence Detector 6131/40 Sky Motion

ABB KNX Presence Detector 6131/40 Sky Motion — 6131/40-24

The ABB KNX Presence Detector 6131/40 Sky Motion watches a room and reports to the KNX bus. Because it uses passive infrared, it senses the smallest movement. So lights and climate stay on only while the room is used. As a result, the building saves energy without any effort from the user.

Presence and brightness in one

First, the detector senses presence. Then, a built-in lux sensor reads daylight. Therefore, it can run Constant Light Control. In short, the lights dim as daylight rises, and lift as it falls. The Sky Motion model uses a wide 360-degree lens for high ceilings. Moreover, it covers atriums, halls and open areas from above.

What it controls

• Lighting, with constant light control
• HVAC and ventilation
• Scenes and presence-based logic
• Fully configured in ETS

Design and mounting

The detector mounts on the ceiling for a clean, low-profile look. Also, it draws power from the KNX bus, so no extra supply is needed. It configures in ETS and works across the ABB i-bus KNX range.

Technical specifications at a glance

• Range: ABB KNX Presence Detector
• Model: 6131/40 Sky Motion
• Sensors: Presence (PIR) + brightness (lux)
• Protocol: KNX (KNX-TP), bus powered
• Mounting: Ceiling (flush)
• Protection: IP20
• Configuration: ETS

Infinitex supplies ABB KNX products in the UAE, and we offer project pricing with ETS support.
